HEADROOM HEAVEN
15 OR 18 VOLTS
Voltage Selector Switch
15 or 18 VOLTS
Simply plug in the power adapter to your existing power source, switch the voltage to either 15 or 18 volts and plug into your pedal. The Xotic Voltage Doubler delivers clean, consistent power with the lowest possible noise.

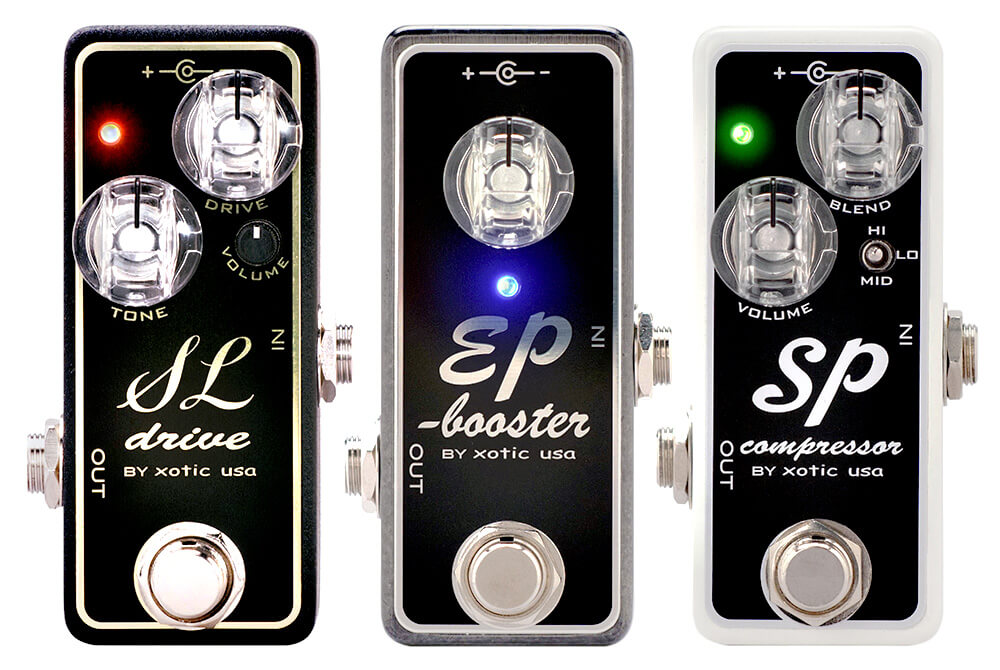

MUST OWN WITH: EP BOOSTER,
SL DRIVE, SP COMPRESSOR
…Enough Said

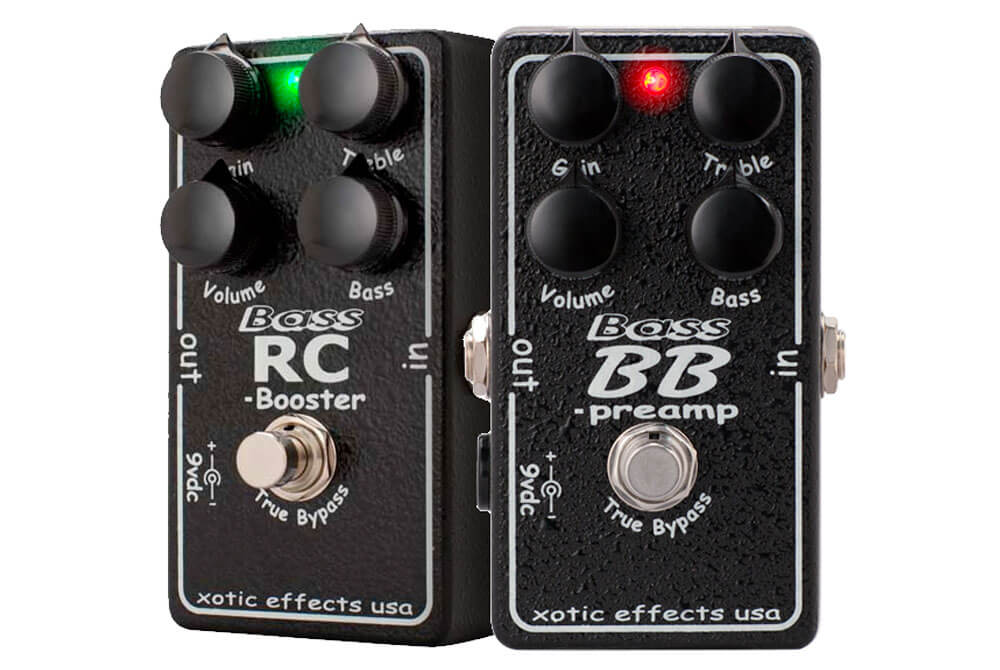

Boosting the Bass Pedals?
OH YEAH!
BB Preamp and Bass RC Booster sound great with bass guitar with the extra headroom and clarity.
WHY DO YOU NEED AVOLTAGE DOUBLER?
The Xotic “Voltage Doubler” is a step-up converter that takes 9 volts DC and boosts it to an output voltage of 15 or 18 VDC (max current draw 80mA).
Higher voltage levels result in more headroom. When you boost the voltage your find your Xotic pedals will get much more dynamic, more headroom, top end and brightness, less compressed sound.

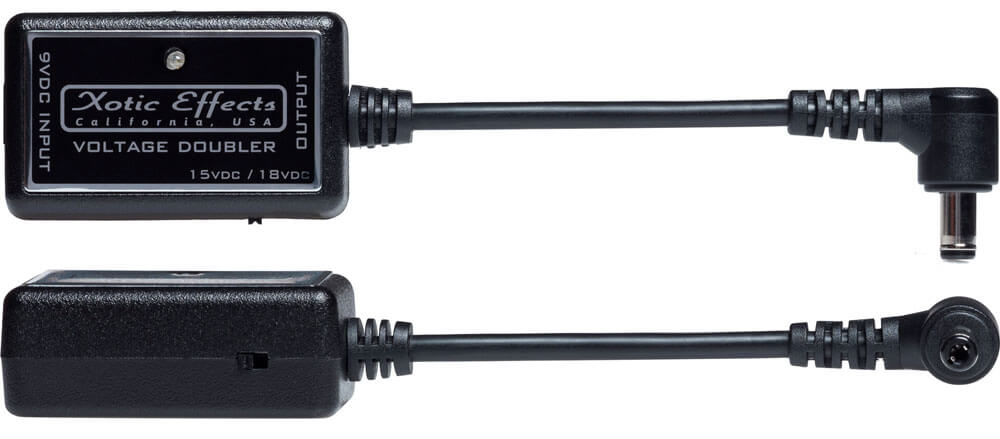

XVD-1 Voltage Doubler Power Adapter
| *We Use Quality Components, Safe with Higher Current Draw. Specifically Designed for the Following Pedals: |
||
| XVD-1 Voltage Setting | 15VDC | 18VDC |
| AC-Booster | YES (Recomended) | NO |
| AC Booster-COMP | YES | YES |
| AC Plus | YES | YES |
| BB Plus | YES | YES |
| BB-Preamp | YES (Recomended) | NO |
| BB-Preamp V1.5 | YES | YES |
| BB-Preamp-COMP | YES (Recomended) | NO |
| BB-Preamp-MB | YES (Recomended) | NO |
| EP-Booster | YES | YES |
| RC-Booster | YES (Recomended) | NO |
| RC-Booster V2 | YES | YES |
| SL Drive | YES | YES |
| Soul Driven | YES | YES |
| SP Compressor | YES | YES |
| Super Clean Buffer | YES | YES |
| Super Sweet Booster | YES | YES |
| Bass BB | YES (Recomended) | NO |
| Bass RC | YES (Recomended) | NO |
Warning! This product is designed & recommended for Xotic pedals only! Do NOT try this on any pedals by any other manufacturers without first determining whether they have components with high enough tolerances or the result may be fire and/or serious injury to you and perhaps your pedal. We are not responsible for any damages you or your pedals may suffer. |
||
