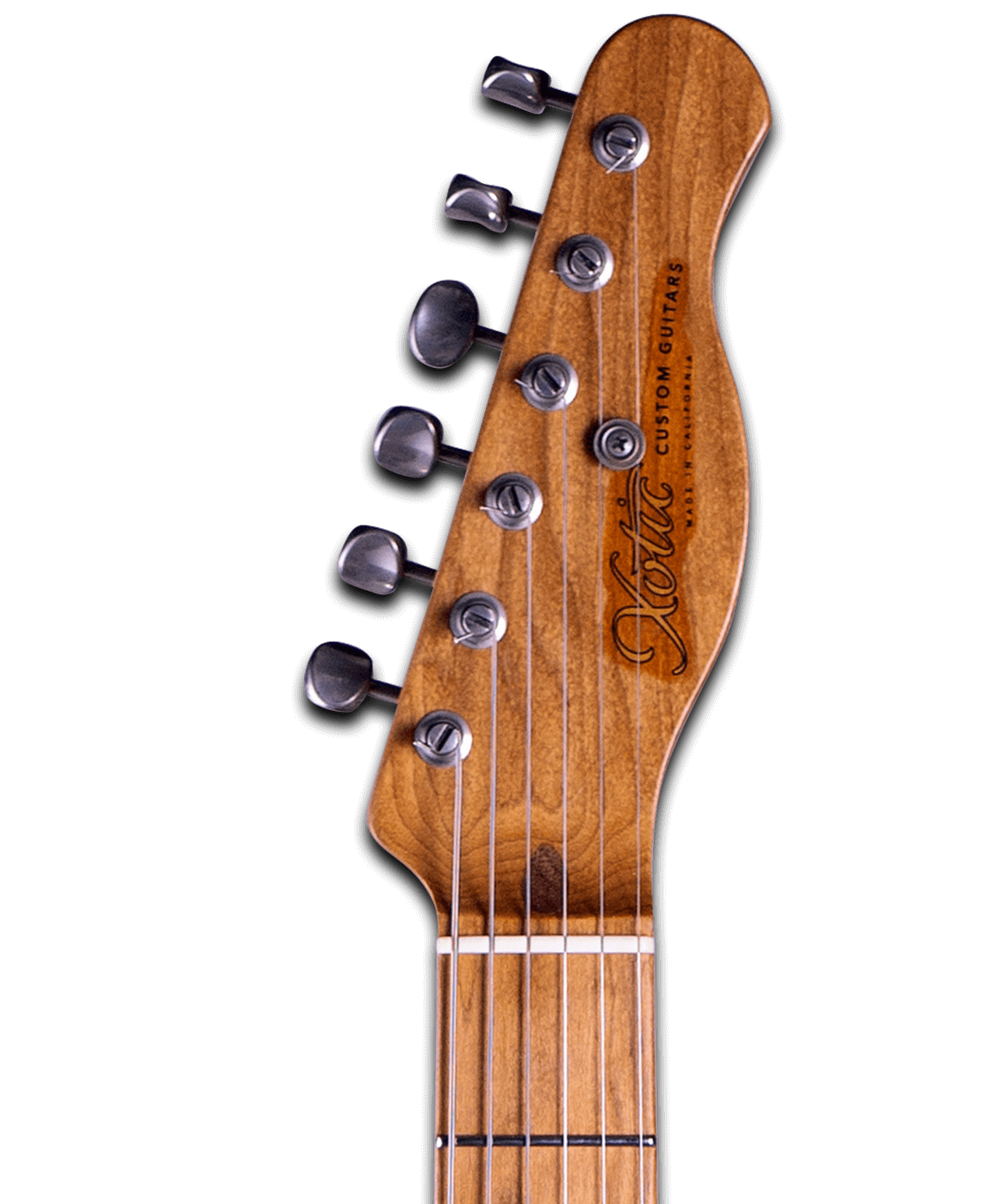

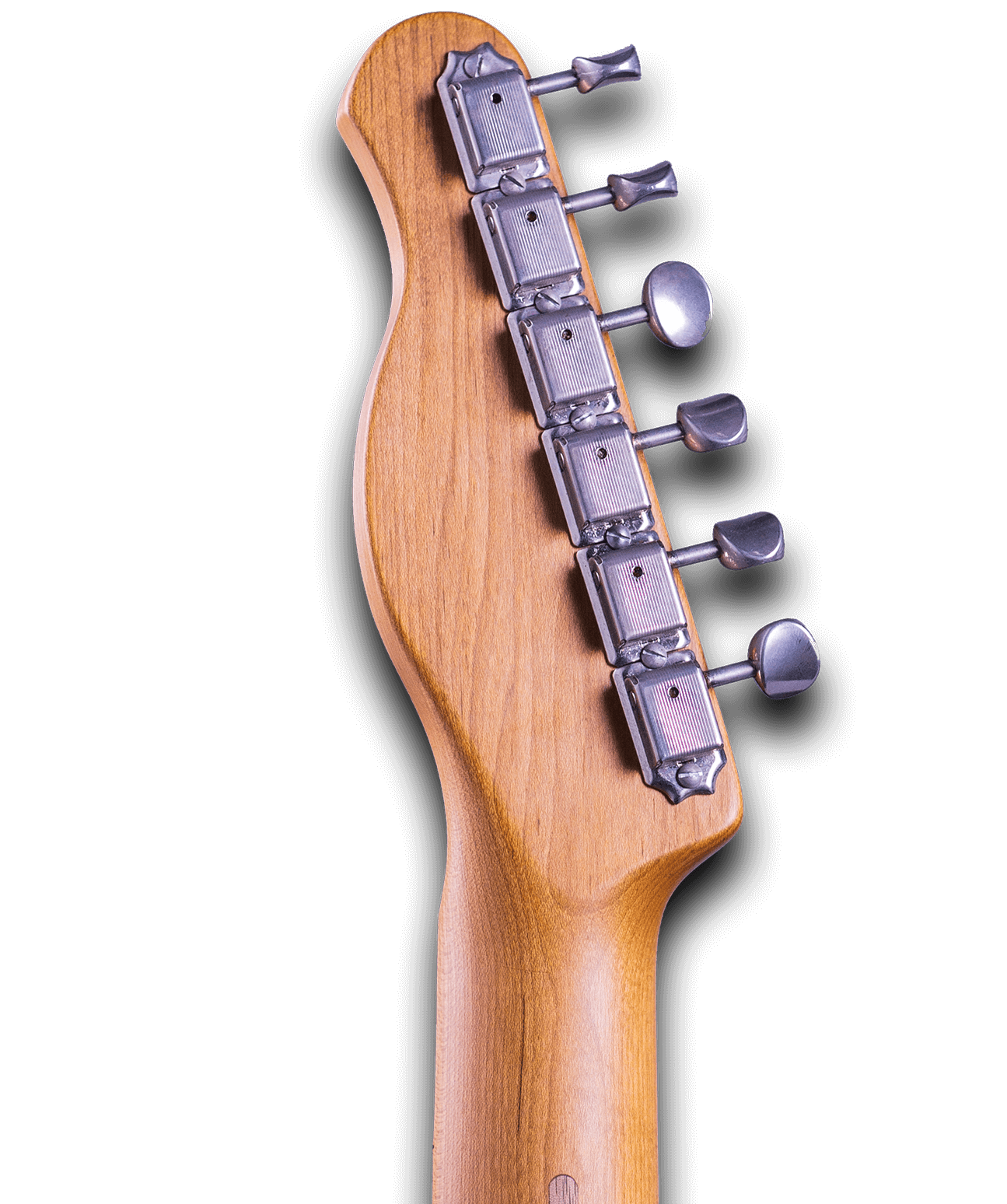

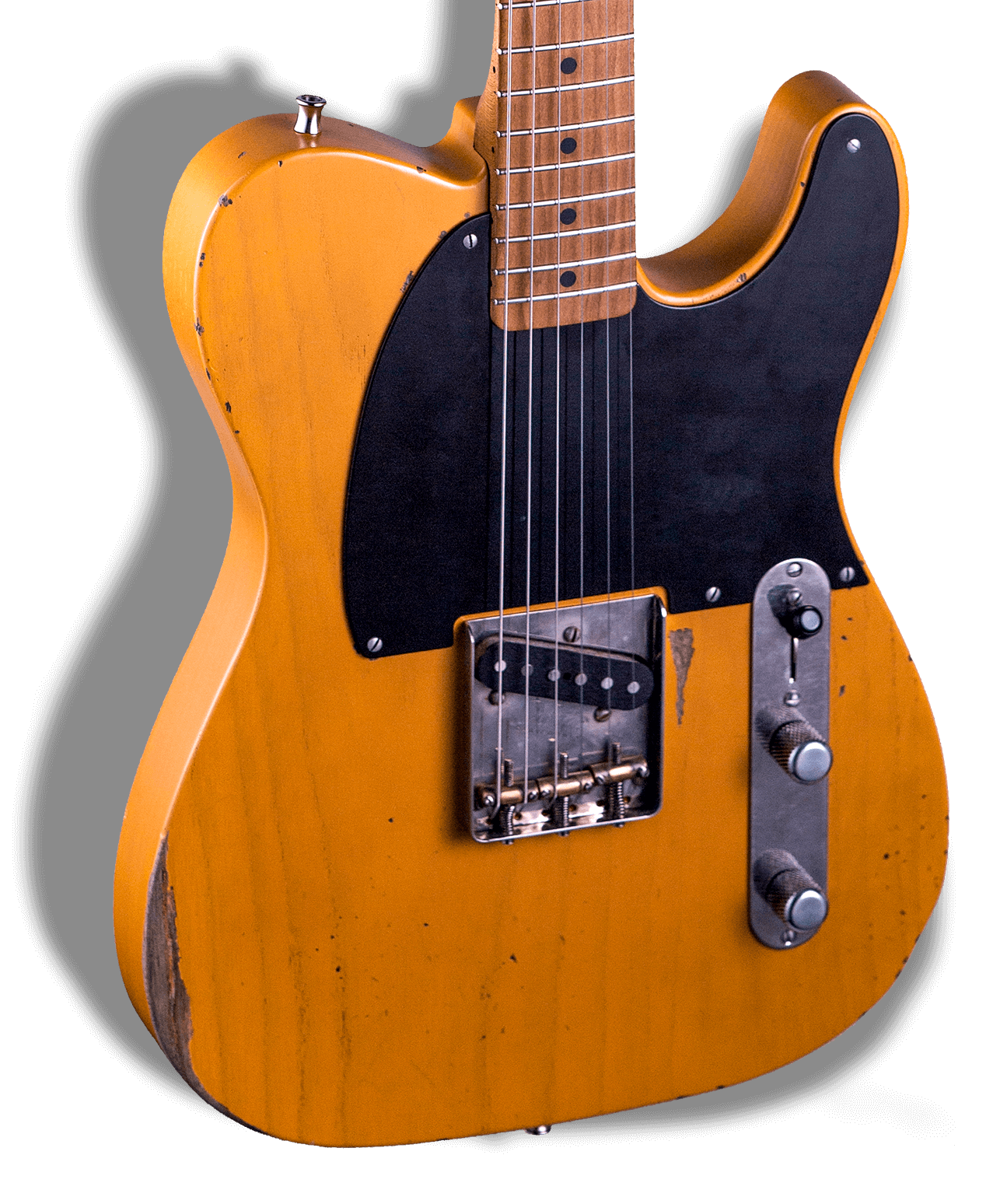

CALIFORNIA CLASSICXTC-AH / XTC-AH2
Ash body with iconic Butterscotch Blonde nitro finish. Heavy aged for a naturally worn look that also opens up the tonal characteristics of the guitar.
The XTC-AH is an E-style guitar with a RV-TE-B-AH bridge pickup only.
The XTC-AH2 features the same specs as the XTC-AH plus an RV-TE-N-AH pickup in the neck position.
*No substitutions. Please use regular XTC form for custom orders
| Body Wood: | 2 piece Ash body |
|---|---|
| Body Color: | Butterscotch Blonde |
| Body Aging: | Medium |
| Neck Wood: | 1 piece flat sawn Hard Maple |
| Fingerboard Radius: | 7.25” straight |
| Neck Grip Shape: | Medium C |
| Frets: | Jescar 55090 Tall Narrow |
| Tone Control Switch: | 3 Way Switch: Pos #1 - fixed treble roll off, Pos #2 - Vol & Tone, Pos #3 - Tone bypass |

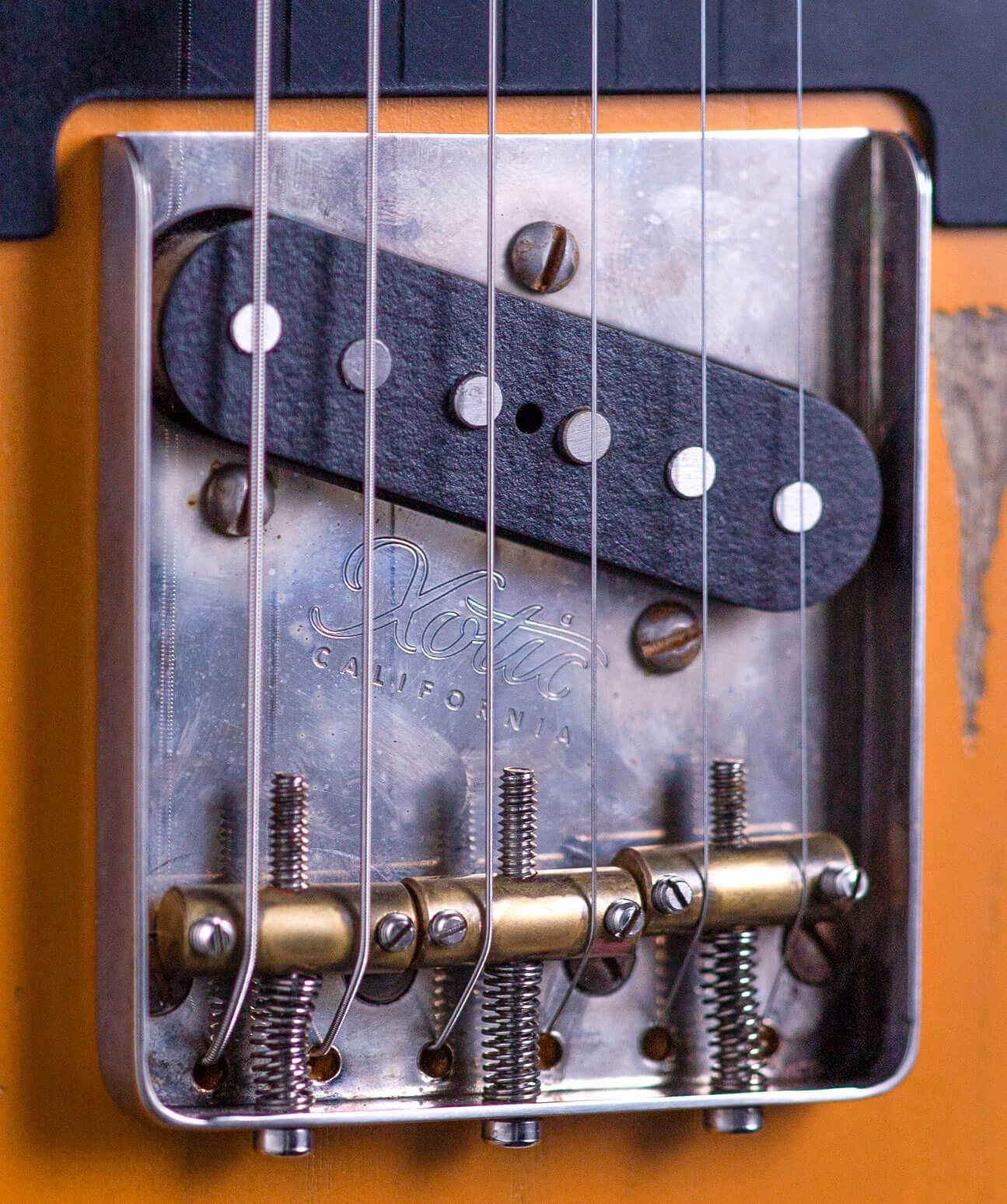

| Bridge: | Xotic TE Bridge |
| Pickups: | XTC-AH: Raw Vintage RV-TEB-AH bridge pickup only XTC-AH2: Raw Vintage RV-TEB-AH bridge, RV-TEN-AH neck |
| Strap Buttons: | Dunlop Strap Buttons |

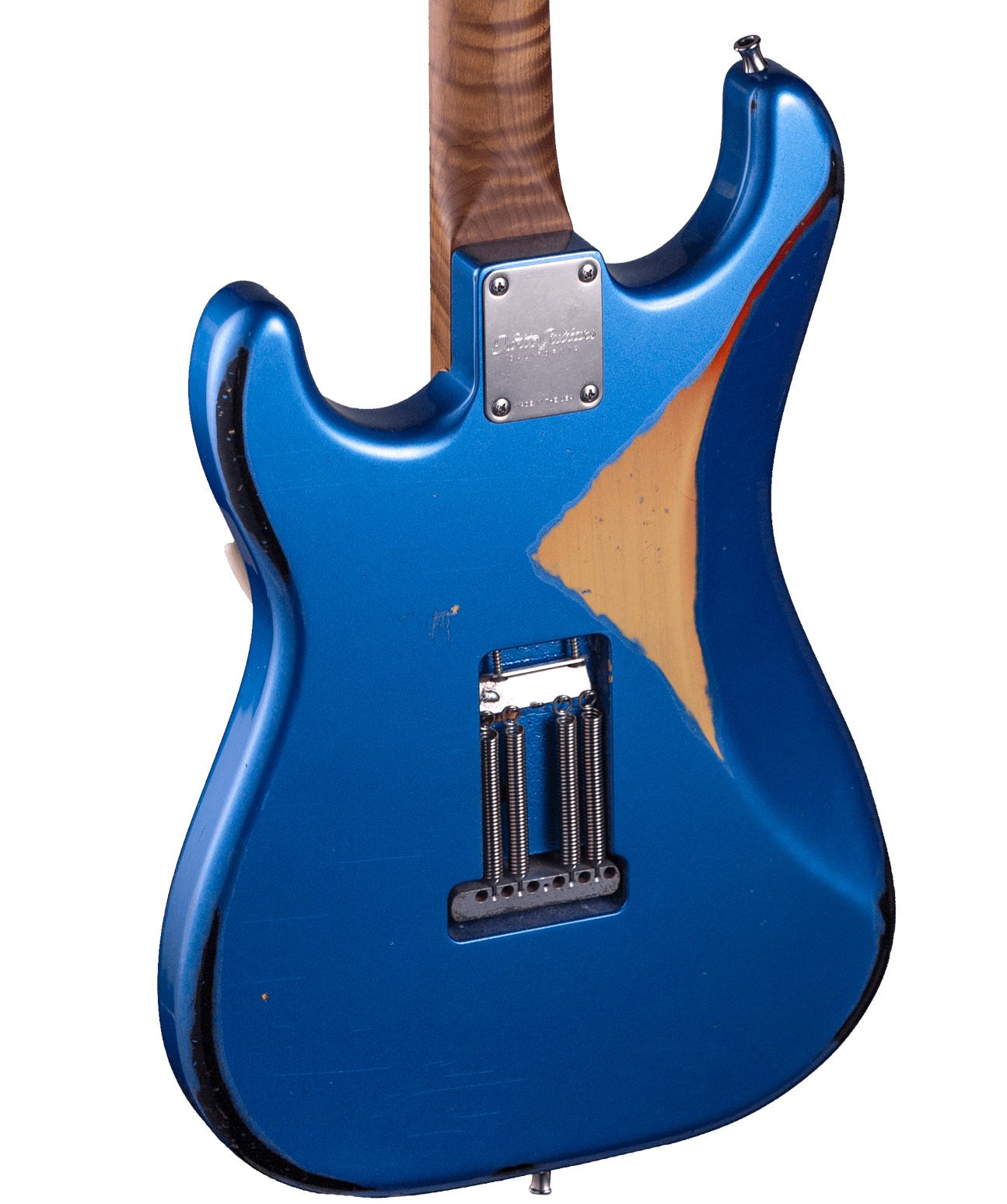

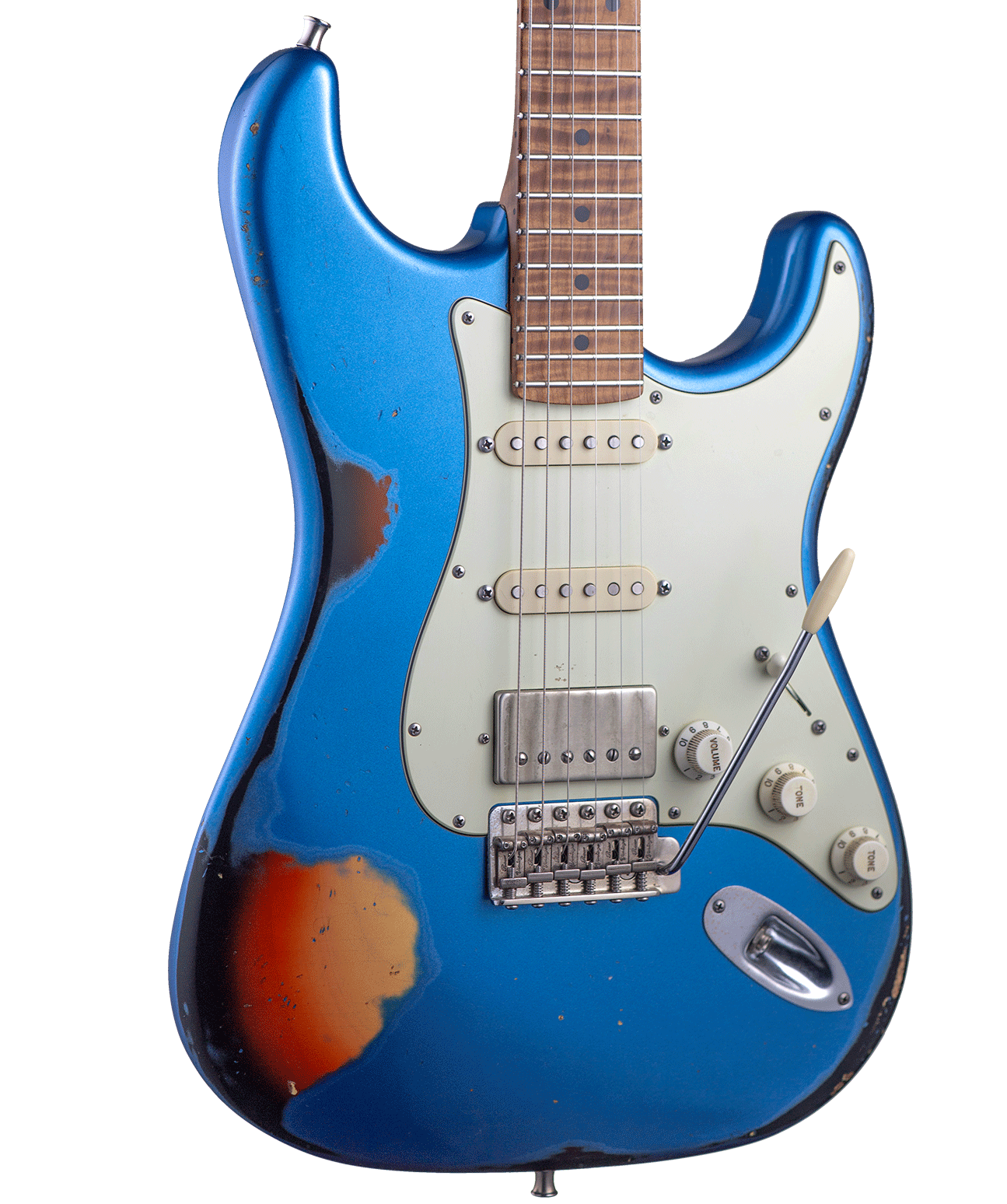

CALIFORNIA CLASSICXSC-AH
Lake Placid Blue over 3TB nitro finish with Super Heavy Aged body for a stunning look and natural tone.
Pickup wiring is set so that the middle pickup is inactive to help eliminate most of the 60 cycle hum. 3 way switch configuration – Pos #1 Neck, Pos #2 Neck/Bridge, Pos #3 Bridge.
*No substitutions. Please use regular XSC form for custom orders
| Body Wood: | 2 piece Alder |
|---|---|
| Body Color: | Lake Placid Blue over 3TB |
| Body Aging: | Super Heavy |

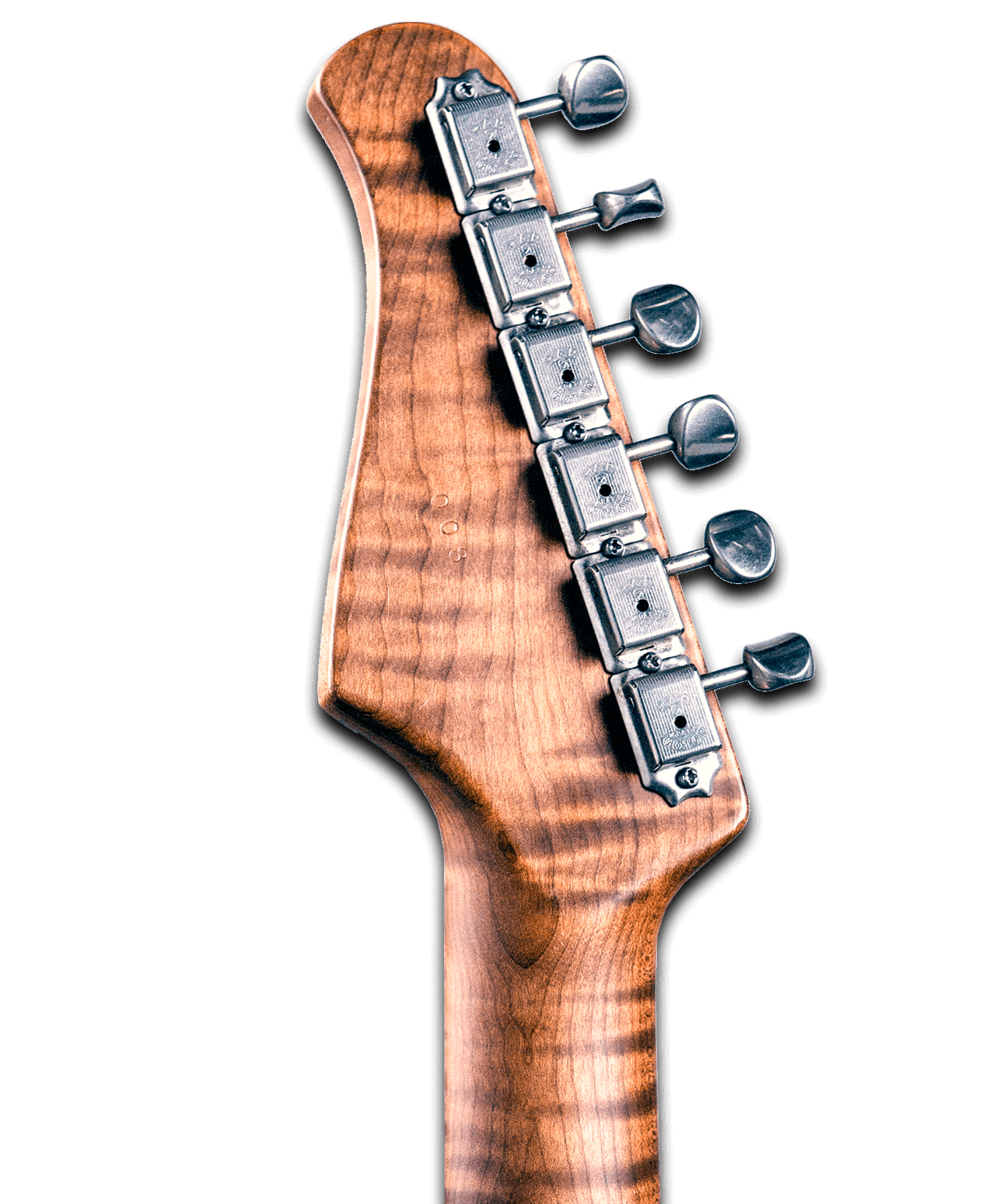

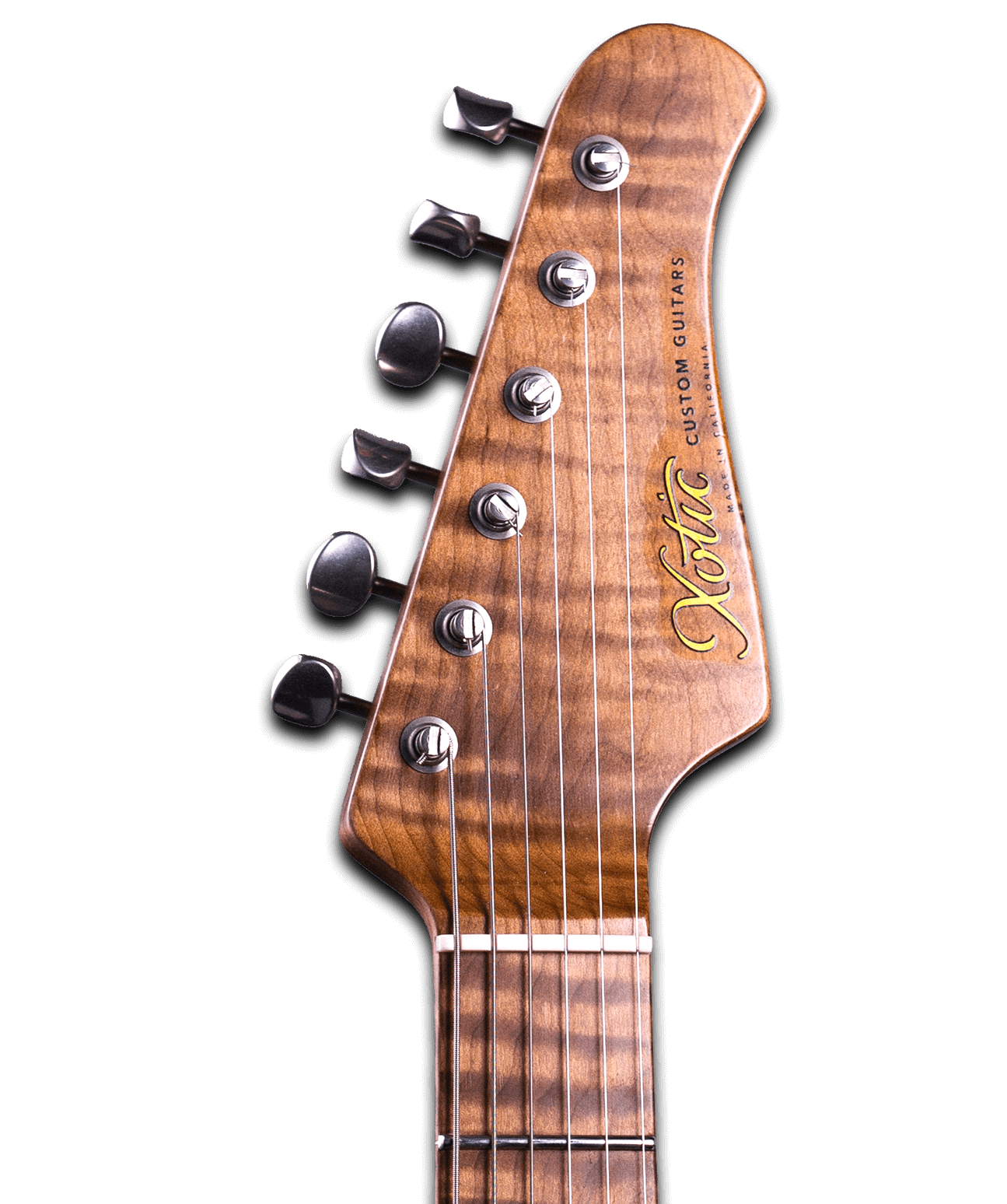

| Neck: | 2 piece flat sawn Roasted Flame Maple 4A+ |
| Fingerboard Radius: | 12” straight |
| Neck Grip Shape: | Modern C |
| Frets: | Jescar 57110 Jumbo |
| Switch: | 3 Way Switch: Pos #1 - Neck, Pos #2 - Neck/Bridge, Pos #3 - Bridge |
| Volume and Tone: | 250k volume, 250k tone |

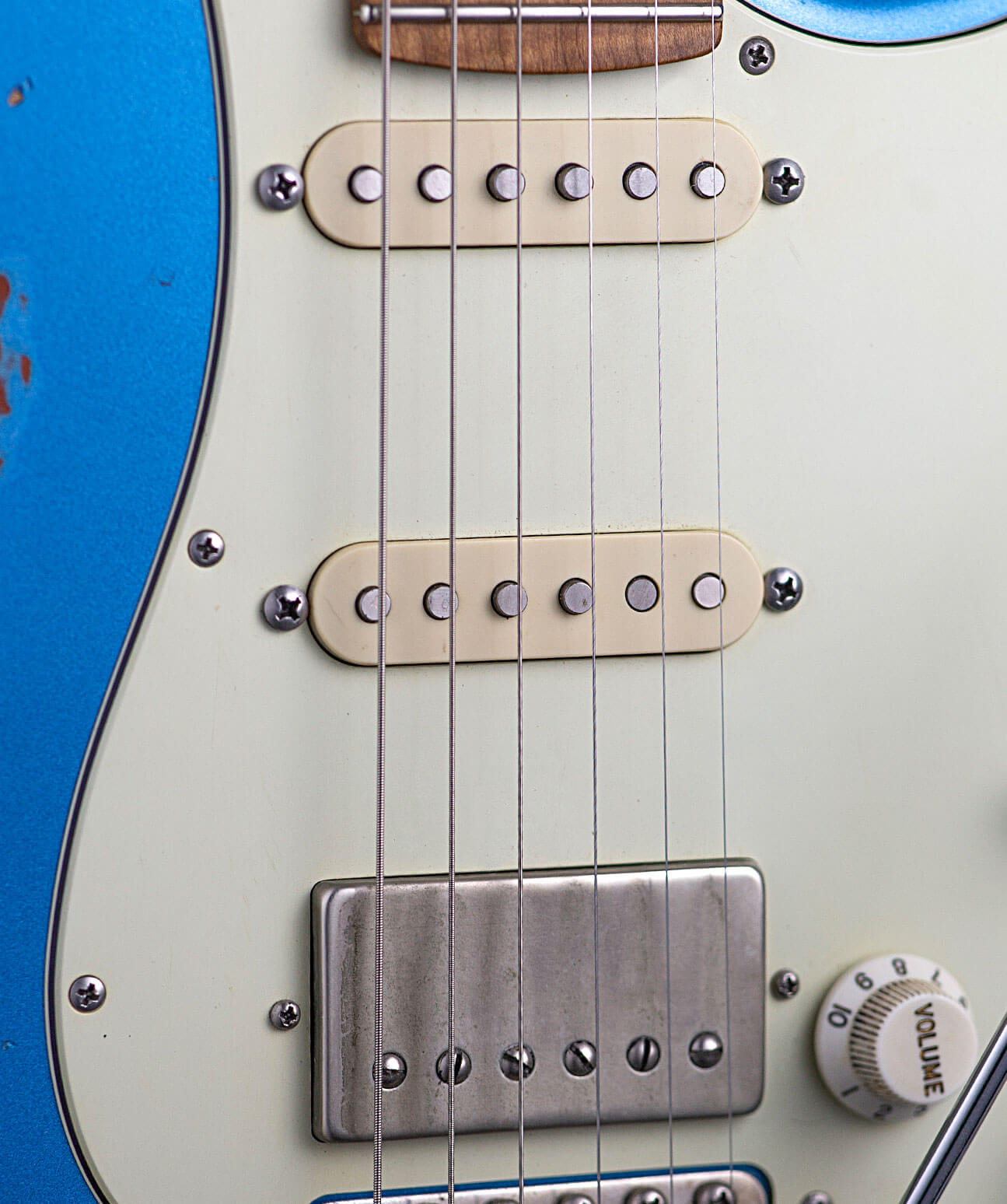

| Neck PU: | Raw Vintage USA RV-60 (0.047uf tone cap) |
| Middle PU: | Raw Vintage USA RV-60 (demagnetized pickup - no wiring) |
| Bridge PU: | Raw Vintage RV-PAF classic (0.02uf tone cap) |
| Strap Buttons: | Dunlop Strap Buttons |
Watch them in action
Get 21 songs and charts from Allen Hinds! 19 are music minus Allen so you can play along.
Songs include Joni, Boos Folly, Little White Lies, Falling Up, All Due Respect, Traces, Hmph, Yonder Hills, Now Really, Buckley, Pedro and Marta, Confianca, Springs Eternal, Just Get In, Bad Baby, Elegant Decadence, Then Again, Some Of This, Worn But Not Tattered, Beyond It All
GET THE CHARTS

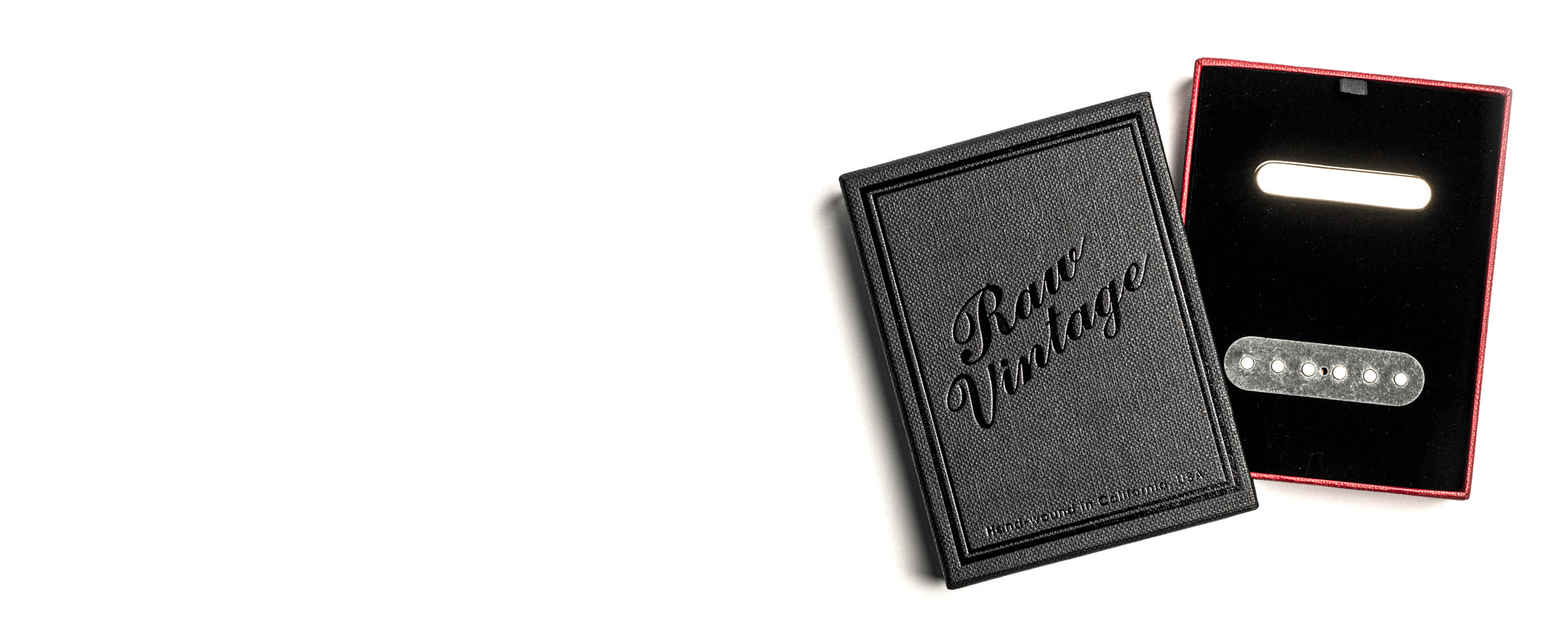

Raw Vintage USA RV-TE-AH pickups
Get the RV-TE-AH pickups available now!
“After playing my new Xotic tele with the Xotic pickups, for only 30 seconds I felt at home. It responds and feels just like my old 52 esquire. Full, defined without being too trebly. Awesome!” – Allen Hinds
RV-TE AH Bridge Standard Cover
- Alnico 5 Magnets
- DCR: 7.2
- Single Formvar Wire
- Push Back Cloth Leads
- Hand wound in Sunny Socal
RV-TE AH Neck Nickel Cover
- Alnico 3 Magnets
- DCR: 7.5
- Plain Enamel Copper Wire
- Push Back Cloth Leads
- Nickel Cover
- Hand wound in Sunny Socal
