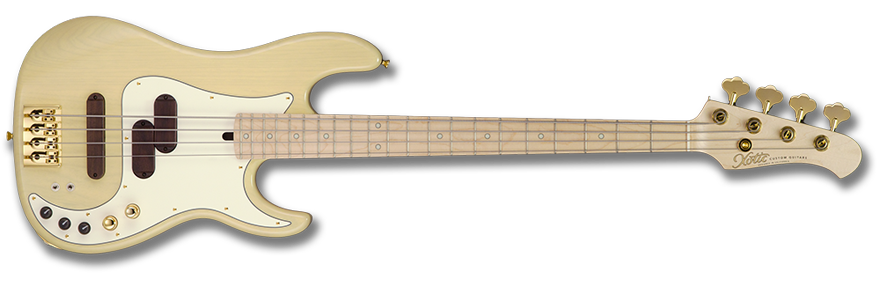

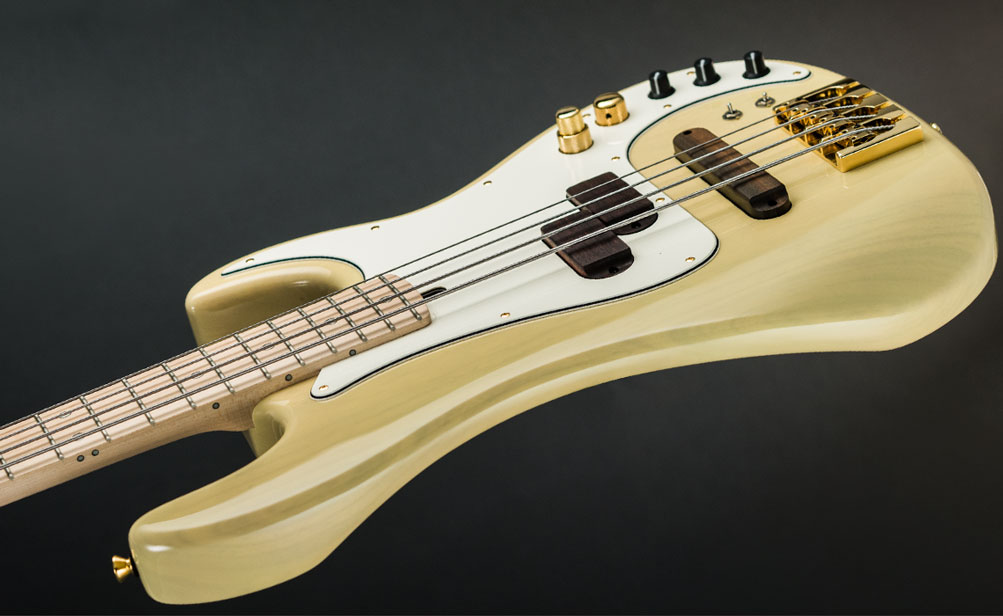

BODY: |
Ash |
COLOR: |
Yellow Blonde |
FINGERBOARD: |
Maple |
NECK: |
21F / Maple |
NECK THICKNESS: |
1F: 22.5mm (0.886 inches)
12F: 25.5mm (1.004 inches) |
NECK FINISH: |
Oil Finish |
NUT: |
Pure Bone |

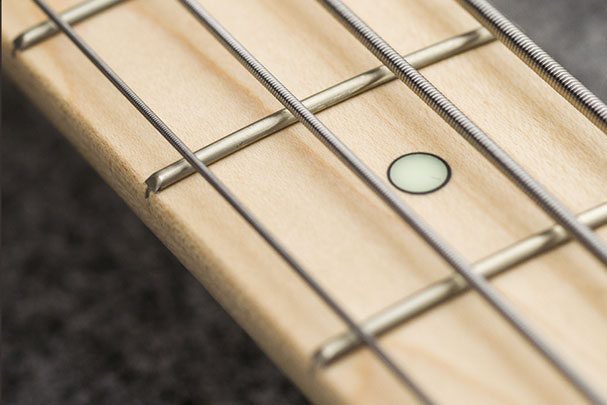

FRET: |
Jescar Silver Nickel (#6150Type) |

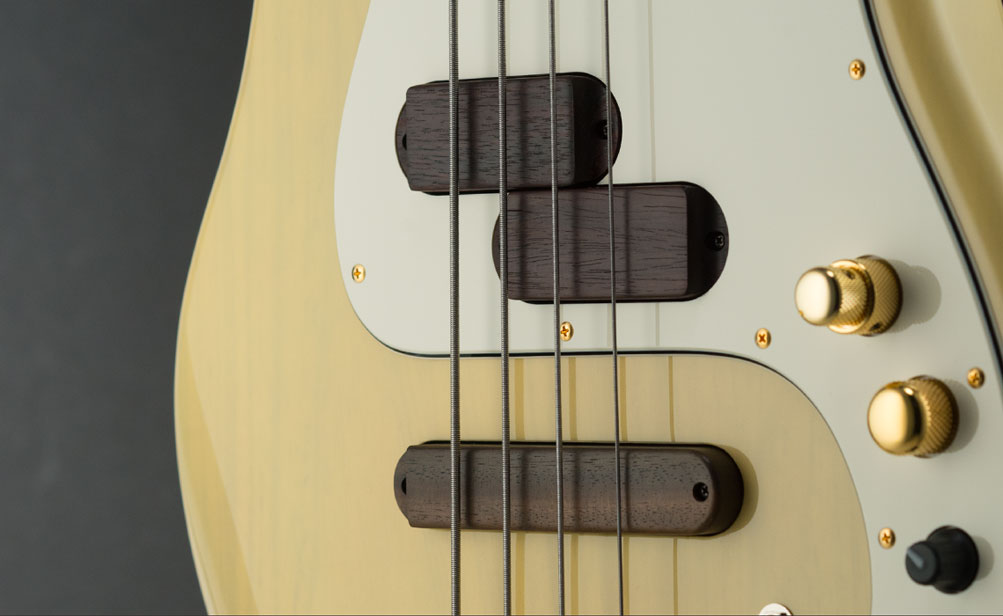

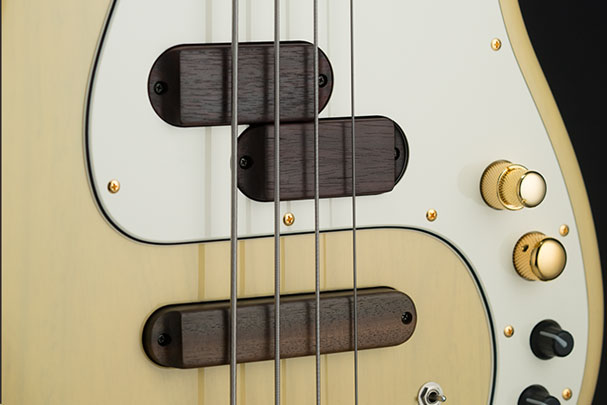

PICKUP: |
Xotic PB & JB w/Wood Cover |

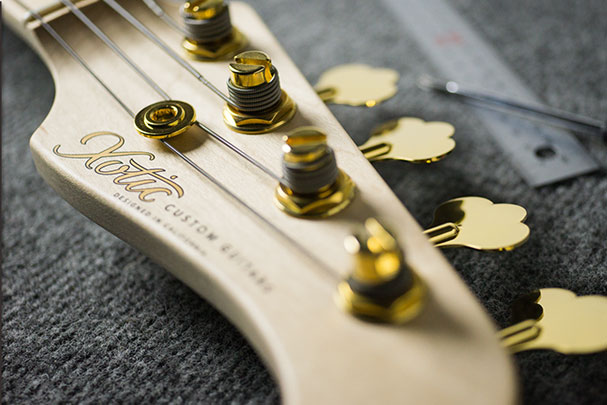

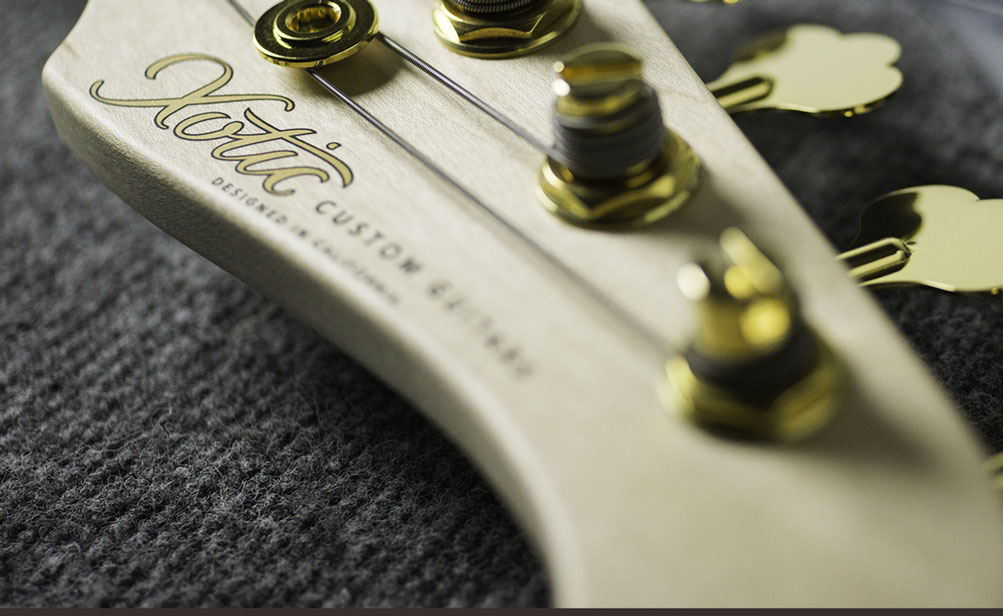

TUNER: |
Hipshot Ultralite w/X-Tender Key (D-Tuner) |

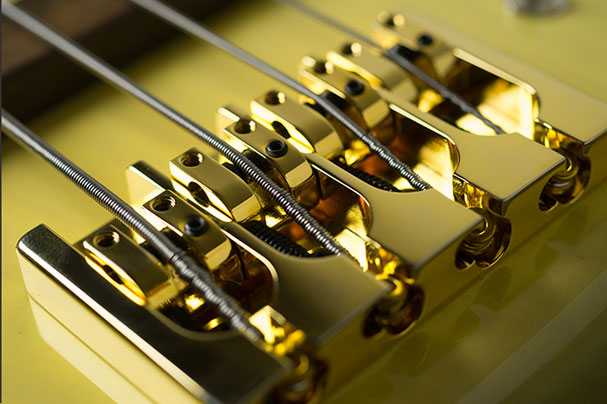

BRIDGE: |
Hipshot A-Style Bridge |

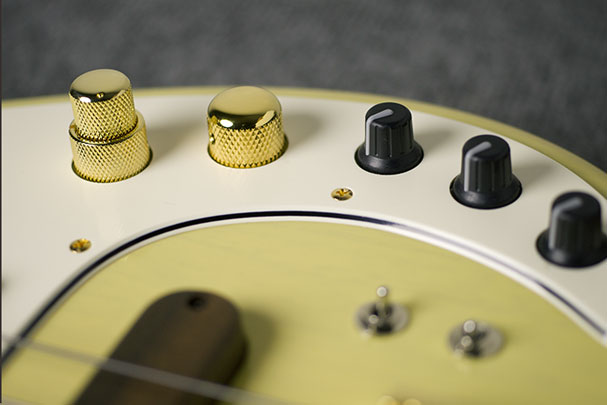

CONTROL: |
2Vol, 1Tone, 3-Band EQ Trilgic2 Bass Preamp
(Mid/Bright SW, Output Gain Control) |
SWITCH: |
Pull Tone For Passive/Active |
HARDWARE: |
Gold |
STRAP BUTTON: |
Gotoh |
NECK SCALE: |
34 inches |
WEIGHT: |
4.5 kg ~ 4.6 kg
(9.92 lbs ~ 10.14 lbs) |
NUT WIDTH: |
42mm
(1.654 inches) |
NECK WIDTH AT THE LAST FRET: |
64mm
(2.520 inches) |
STRING SPACING AT THE BRIDGE: |
19mm
(.748 inches) |
MSRP: |
Ask |
PREAMP: |
Tri-logic 2 Bass Preamp
Three Band EQ (high, mid, low) boost & cut. Center position produces flat, unaltered sound, with no added tonal coloration.
* Mini Toggle Switch - Use the Switch closer to the headstock to switch the mid-frequencies (400Hz/800Hz), and the other Switch to switch the treble-frequencies (6Hz/12kHz).
* Pre-set gain control to boost gain by one to three times (located in back panel for easy access).
* 18V drive is for more headroom, which allows incoming signals to pass through cleanly, without clipping the high-end or low-end frequencies. (Requires two 9V batteries)
Tri-logic 2 Bass Preamp Frequency Specification
SW1 (Mid Switch): UP/DOWN - 400Hz / 800Hz - ±12dB
SW2 (Bright Switch): UP/DOWN - 6KHz / 12K - ±18dB |
UPGRADES |
FINGERBOARD: |
+Ask: Ebony
+Ask: Ebony Fretless
|
NUT: |
+Ask: Brass |
PICKGUARD: |
+Ask: Xotic Tortoise 1P
+Ask: Gold Anondized
|
MATCHING HEAD: |
+Ask |
PICKUPS: |
+Ask: Lindy Fralin PB & JB |
